Hanging Localization Step

Comments

45 comments

  • Avatar
    Sushma Chaluvadi

    Hello All,

    We received an update from Google letting us know that they were able to isolate the source of the bug and are working on a fix. However, they have resolved that the fix will take a bit of time. Therefore, they are currently working on rolling back to a previous unaffected version of the component. We are waiting to hear when this rollback will take effect and will update this thread with that information as soon as we hear!



    Thank you all for your patience,

    Sushma

    0
    Comment actions Permalink
  • Avatar
    Adam Nichols

    Hi all,

    Terra developer here. We have a possible new lead from Google that we're sharing on an as-is basis in case folks want to try it. We have not validated it extensively, though preliminary results are promising.

    Google has advised us that increasing the size of your disk improves its I/O performance [0] and could reduce the chances of a localization stall. The cost savings from lowering localization time may outweigh the increased disk cost. A possible lower limit for disk size when implementing this change could be 200 GB, based on Google's documentation.

    Adam

    [0] https://cloud.google.com/compute/docs/disks/performance

    0
    Comment actions Permalink
  • Avatar
    Liudmila Elagina

    Hello Adam,



    Thank you for this update. Is this the only solution Google offers us for this issue or there is a plan to roll back their updates that caused it in the first place?

    The easiest solution is to throw more money at the problem.



    Thank you,

    Luda

    0
    Comment actions Permalink
  • Avatar
    Adam Nichols

    Hi Luda,

    Google is still working on a definitive solution, but the suggestion to speed things up by increasing disk size does look promising [0].

    Here is a worked example showing how increasing disk size can actually decrease cost.

    In testing, we observed a particular workflow that took 1.25 hours to localize on an 80 GB disk and just 0.25 hours on a 500 GB disk. Let's pair each of those disks with an n1-standard-4 VM (4 CPUs, 15 GB). I assume a 0.5 hour task runtime.

    Persistent disk cost: $0.040 per GB per month
    VM cost: $0.190 per machine per hour

    80 GB disk:

    1.25 hours localization + 0.5 hours task runtime + 1.25 hours delocalization = 3 hours of disk and CPU.

    Disk cost: $0.01
    VM cost: $0.57
    Total: $0.58

    500 GB disk:

    0.25 hours localization + 0.5 hours task runtime + 0.25 hours delocalization = 1 hour of disk and CPU

    Disk cost: $0.08
    VM cost: $0.19
    Total: $0.27

    The key thing to remember is that you are charged for the VM for the entire localization period; and the charges for the VM are a lot more expensive than for the disk.

    Hope this helps and rest assured we will continue to update this thread as we learn more.

    Adam

    [0] https://cloud.google.com/compute/docs/disks/performance

    0
    Comment actions Permalink
  • Avatar
    Liudmila Elagina

    Hello Adam,

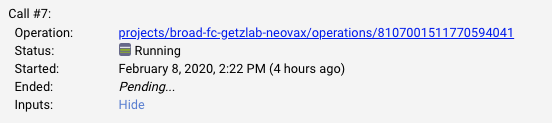

    I have tried this solution: increasing disk size to 600GB. Localization itself takes now an hour and then task anyway gets stuck for more than 3 hours at the same point (still running not sure how long it can be stuck there):

    2020/02/08 20:25:42 Starting container setup.
    ........ Localization script output ...........
    2020/02/08 21:20:48 Localization script execution complete.



    Are there any updates from Google? As far as I can see now Terra is completely unusable. I have to babysit all my runs to make sure they do not idly sit and waste money.



    1
    Comment actions Permalink
  • Avatar
    Adam Nichols

    Hi Luda,

    How big are the files you're localizing to the 600 GB disk?

    One hour of localization still seems like a pretty long time, and we know that longer localization times are more likely to induce the bug.

    You have correctly identified that hanging at "Localization script execution complete" indicates you've run into the bug. It is deeply unfortunate that it is still happening and we are working the problem both from our side and the Google side.

    Adam

    0
    Comment actions Permalink
  • Avatar
    Adam Nichols

    Hi Luda,

    An eagle-eyed colleague looked at the operations metadata for the task pictured and noticed that the disk size used is actually 60 GB, not 600. 60 GB would not be enough to reliably speed past the bug.

    Is there possibly a typo in your post, or in the WDL?

    "disks": [
    {
    "name": "local-disk",
    "sizeGb": 60,
    "sourceImage": "",
    "type": "pd-standard"
    }
    ]

    Furthermore, we have received word from our contact at Google that they will be fixing the behavior for small disks tomorrow, 2/11.

    Best,

    Adam

    0
    Comment actions Permalink
  • Avatar
    Liudmila Elagina

    Hello Adam,



    This is great news. I am sure will try it out.

    I will double-check why the size of my VM was 60GB instead of 600GB.



    Thank you,
    Luda

    0
    Comment actions Permalink
  • Avatar
    Yosef Maruvka

    Hello,

    I tried to increase the VM size but it did not help. I gave 250G for the localization of WES samples (~10G) and still the jobs were not running.

    Maybe instead of reimbursement, can you please pay for us to download the files into the Broad's machines so we could just run the jobs vis the UGER system?



    Thanks,



    Yosi





    0
    Comment actions Permalink
  • Avatar
    breardon

    Adam Nichols thank you for the updates thus far. Can you folks tell us when the fix has been implemented today? Cheers,

    0
    Comment actions Permalink
  • Avatar
    Adam Nichols

    Google did release the fix and our testing looks good.

    0
    Comment actions Permalink
  • Avatar
    Yosef Maruvka

    Hello,



    I rerun jobs at 3pm yesterday that shouldn't take more than 2-4 hours. About half of them are still running. See here "pazlabtest/Colon_Cancer_Sam"



    Can you please assist me downloading the 83 WES file to the Broad's server so I could run it via the UGER system? For a week i'm trying to run something that should take a few hours.



    Thanks,

    Yosi



    0
    Comment actions Permalink
  • Avatar
    Jason Cerrato

    Hi Yosi,

    I've taken a look at some of the logs for the latest submission in that workspace and it does not appear to be hanging on localization—the shards appear to get stuck on a docker run command, specifically it seems to be getting stuck on this python3 /src/msmutect.py part. You can tell that localization is working fine as the same behavior shows up between the successful tumor_msmutect task and the failed/aborted normal_msmutect task.

    2020/02/11 04:08:06 Localization script execution complete.
    2020/02/11 04:08:23 Done localization.

    In both cases, the task moves on to the Running user action step.If you would like us to take a closer look, please feel free to open a ticket with us at support@terra.bio and we'll be happy to take a look.

    If you would like to download files to the Broad server, we recommend using gsutil cp from the workspace bucket to the Broad server. BITS may be a good resource if you require additional help in figuring out how to do this. You can open a ticket with them by going to broad.io/help.

    Kind regards,

    Jason



    0
    Comment actions Permalink
  • Avatar
    Liudmila Elagina

    Hello Jason and Adam,



    I ran a few pairs through our regular CGA pipeline and it seems the fix that Google has implemented fixes hanging issue. I also figured out why my disk size didn't increase and will increase it for future runs.

    Thank you again for your help and patience!!!



    Luda



    0
    Comment actions Permalink
  • Avatar
    Adam Nichols

    No problem and thank you for working with us as we sorted it out.

    0
    Comment actions Permalink
