PreparingJob state consumes most of a task running time, how to avoid?

July 16, 2020 16:02
8 comments

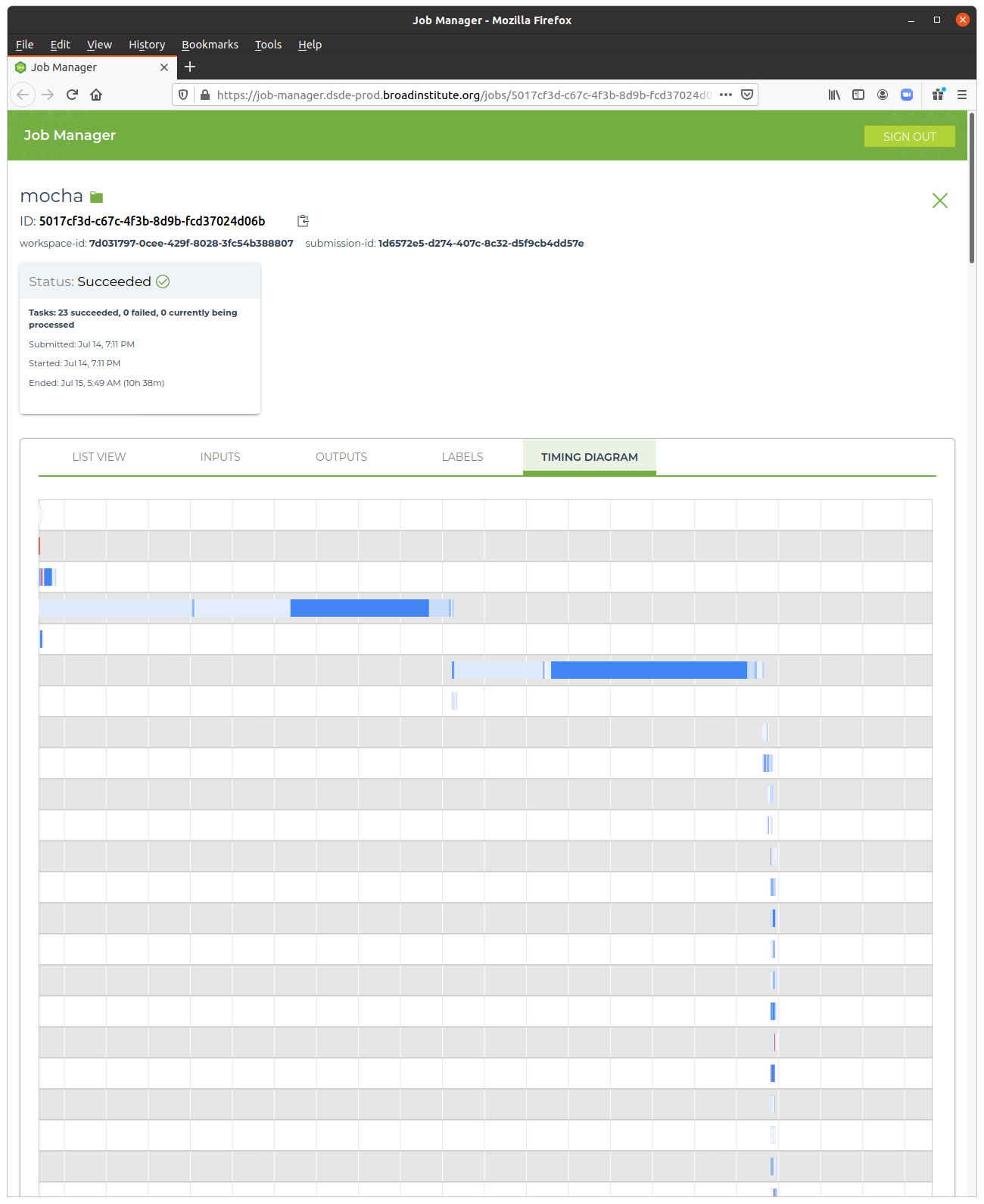

I am having tasks spending a lot of time in PreparingJob state. In the following figure:

You can see the long tasks starting with a long light blue segment that is described as PreparingJob. The dark blue segments are the UserAction states where the code is actually run. These were tasks that requested 4 CPUs and less than 8GB of RAM. The only thing special about the tasks was that they processed long arrays of files, the first two Array[File]+ with 1,407 small files each and the second one Array[File]+ with 1,407 small files.

I have shared the workspace with GROUP_FireCloud-Support@firecloud.org if that helps and these were the labels for the job:

caas-collection-name "7d031797-0cee-429f-8028-3fc54b388807"

cromwell-workflow-id "cromwell-5017cf3d-c67c-4f3b-8d9b-fcd37024d06b"

submission-id "1d6572e5-d274-407c-8c32-d5f9cb4dd57e"

workspace-id "7d031797-0cee-429f-8028-3fc54b388807"

Comments

8 comments

Jason Cerrato
- July 16, 2020 16:45
Hi Giulio,

Thank you for sharing those details. I'll be happy to take a closer look. Can you provide a link to the workspace? Since the email you shared it with is a group, we do not get individual notifications for being added.

Many thanks,

Jason

0
Giulio Genovese
- July 16, 2020 16:51
This is the URL I use to access the workspace.

0
Jason Cerrato
- July 17, 2020 20:05
Hi Giulio,

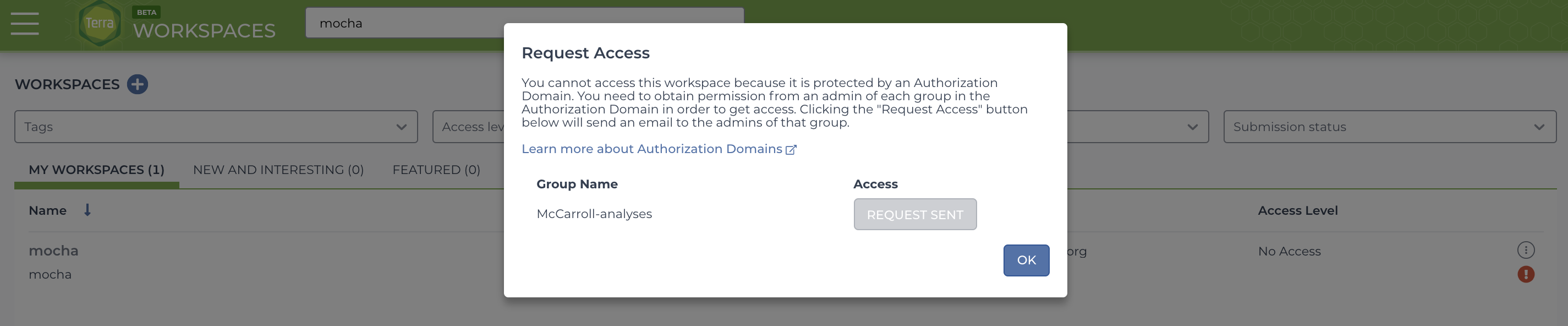

I've sent a request to be added to this authorization domain for the workspace.

I'll see if I have any visibility into what went on with this job through other methods in the meantime.

Kind regards,

Jason

0
Jason Cerrato
- July 21, 2020 15:11
Hi Giulio,

We believe that the long PreparingJob segments are due to the fact the calls are getting the size of hundreds of files. Key lines in WDL:
```
task gtc2vcf {
  input {
    Array[File]+ gtc_files
  }
  Float gtc_size = size(gtc_files, "GiB")
  Int disk_size = select_first([disk_size_override, ceil(10.0 + bpm_size + csv_size + egt_size + ref_size + 2.0 * gtc_size + sam_size)])  runtime {
    disks: "local-disk " + disk_size + " HDD"
  }
}
```
Before Cromwell can tell the pipelines API what size disk to use, it has to measure the size of all those files. We suspect this is a case of a time-vs-money trade off: patiently waiting for the sizes to be retrieved by Cromwell, and hopefully saving on disk costs when the job eventually does run. An alternative to make the job run faster would be not to measure the sizes of hundreds of inputs and aim to hit the sweet spot of enough disk so the job runs but not too much that your bill isn’t outrageous.

I hope this is helpful.

Kind regards,

Jason
0
Giulio Genovese
- July 21, 2020 17:48
If that's the case, there is an easy solution. Those files are all the same size anyway, so I can just change that code to:
```
  Float gtc_size = length(gtc_files) * size(gtc_files[0], "GiB")
```
If this works and it removes the PreparingJob time away from the workflow, it just made my day!
0
Jason Cerrato
- July 21, 2020 18:29
Hi Giulio,

Glad to hear! Let us know if you find more success with this change.

Kind regards,

Jason

0
Giulio Genovese
- July 23, 2020 14:02
I am happy to say that the PreparingJob wait time is completely gone from my pipeline(!). I do have a lingering question though. Does it take longer to estimate the size of a file if it is in a multi-regional bucket than if it is in a bucket localized in the same region where the computation is taking place?

0
Jason Cerrato
- July 24, 2020 17:41
Hi Giulio,

This shouldn't have an impact on the time to estimate size, since it should be precalculated.

Kind regards,

Jason

0
