How to access and export controlled data to Terra via DUOS

Allie Cliffe
  • Updated

Step-by-step instructions to log into and set up DUOS to access controlled data for analysis in a Terra workspace.

Step 1: Request access on DUOS

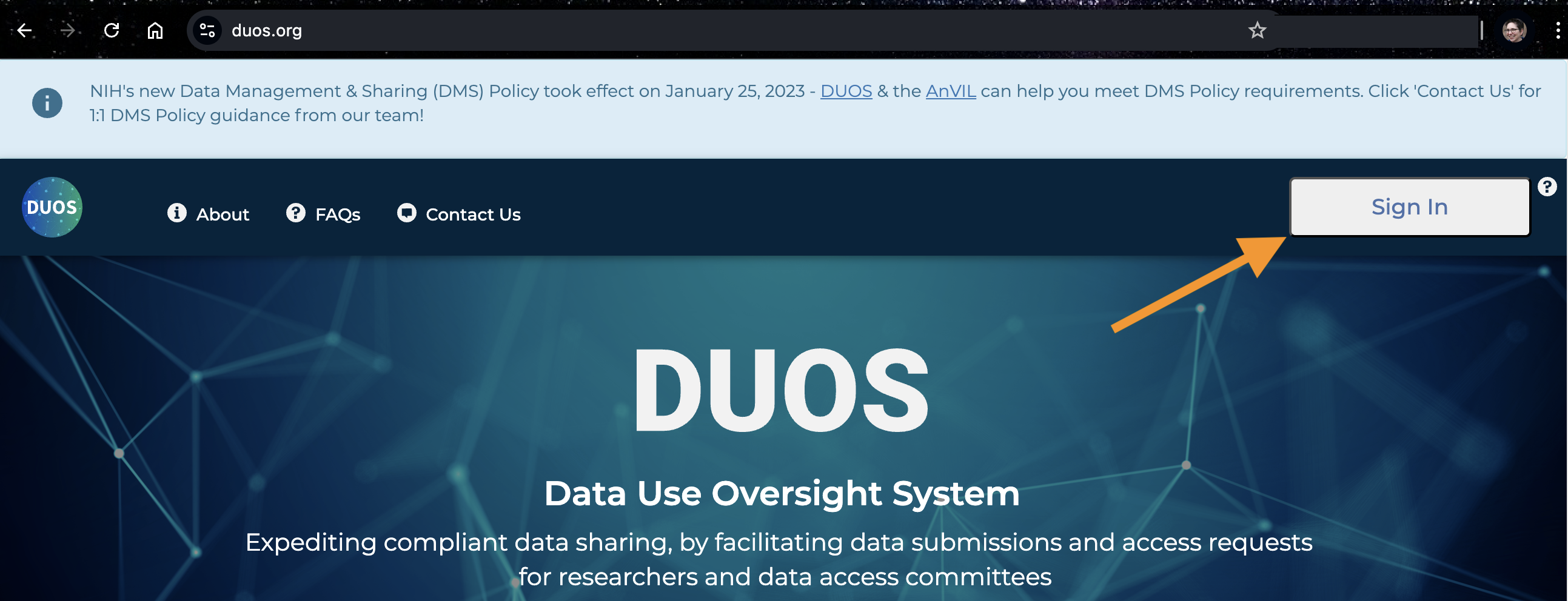

1.1. Go to duos.org and click sign-up/sign in using MSFT or Google SSO. Use the same login you use for app.terra.bio

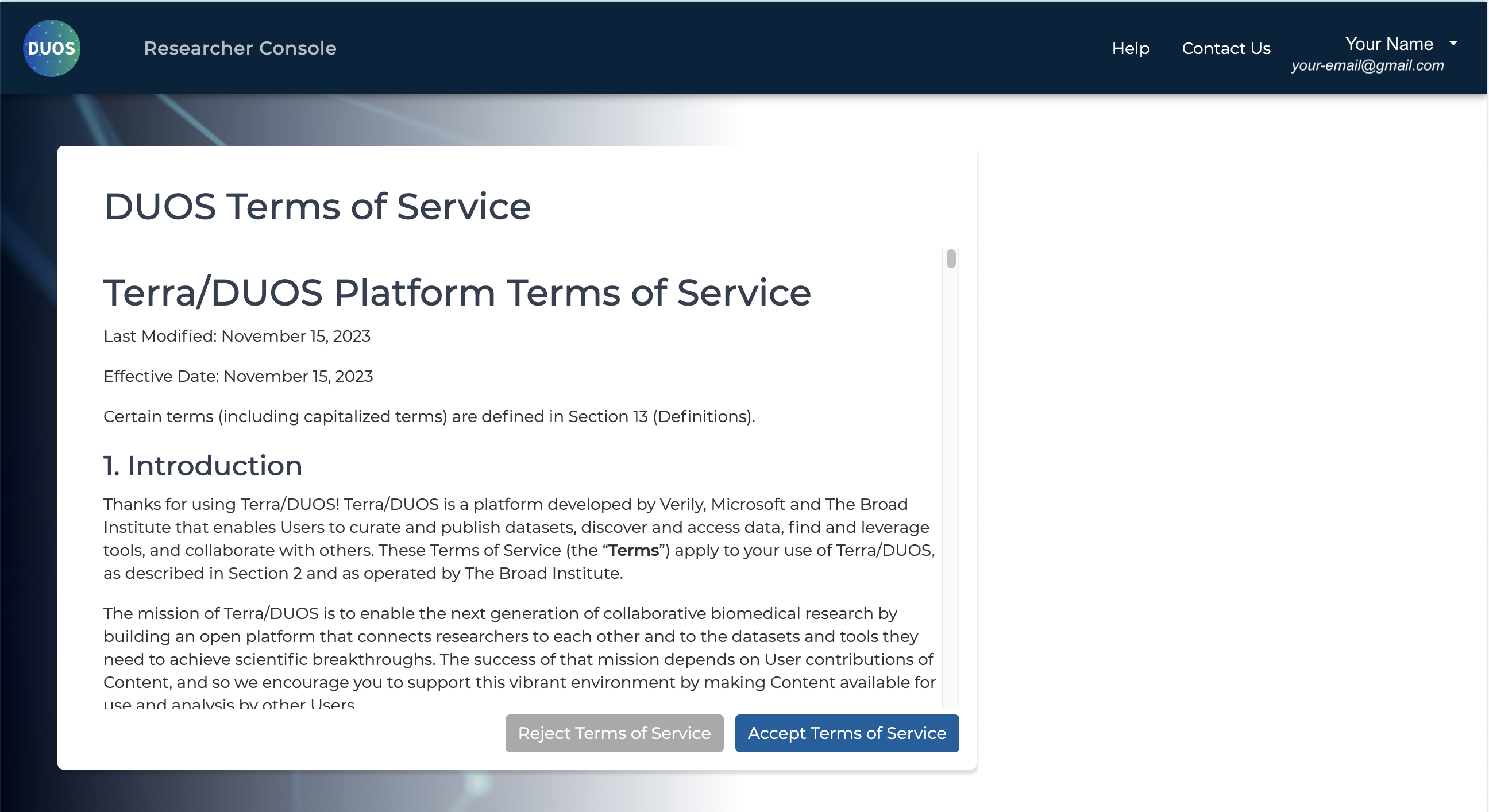

1.2. Accept the Terms of service.

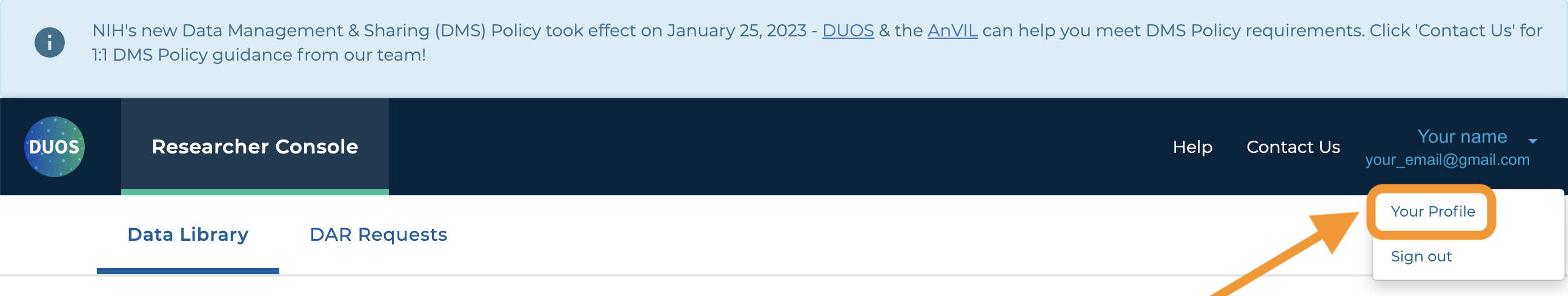

1.3. In the Researcher Console, select Your Profile under your name (top right).


1.4. Once you land on the profile page, add your full name and select your institution from the dropdown (start to fill in the name).


DUOS-setup_Affiliation-and-role-section-with-'Your-institution-name'-in-the-institution-field_Screenshot.png

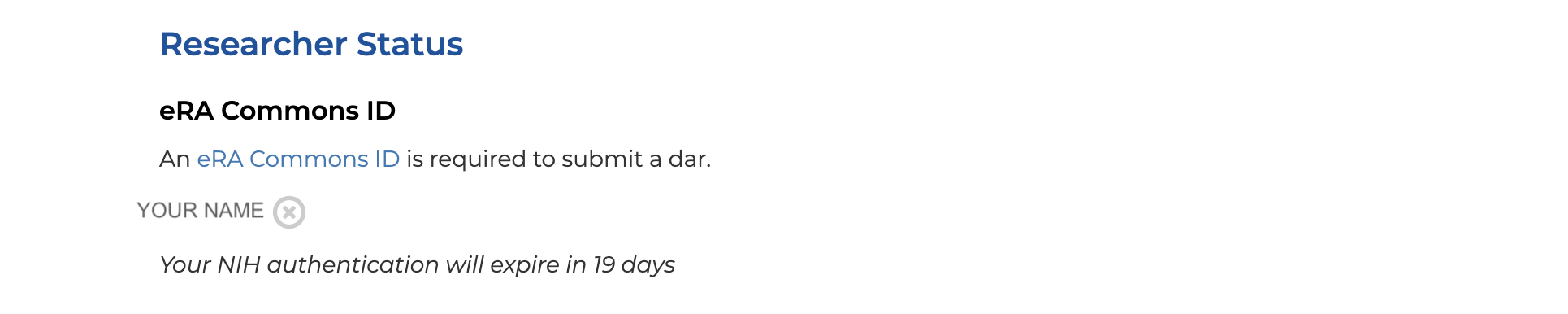

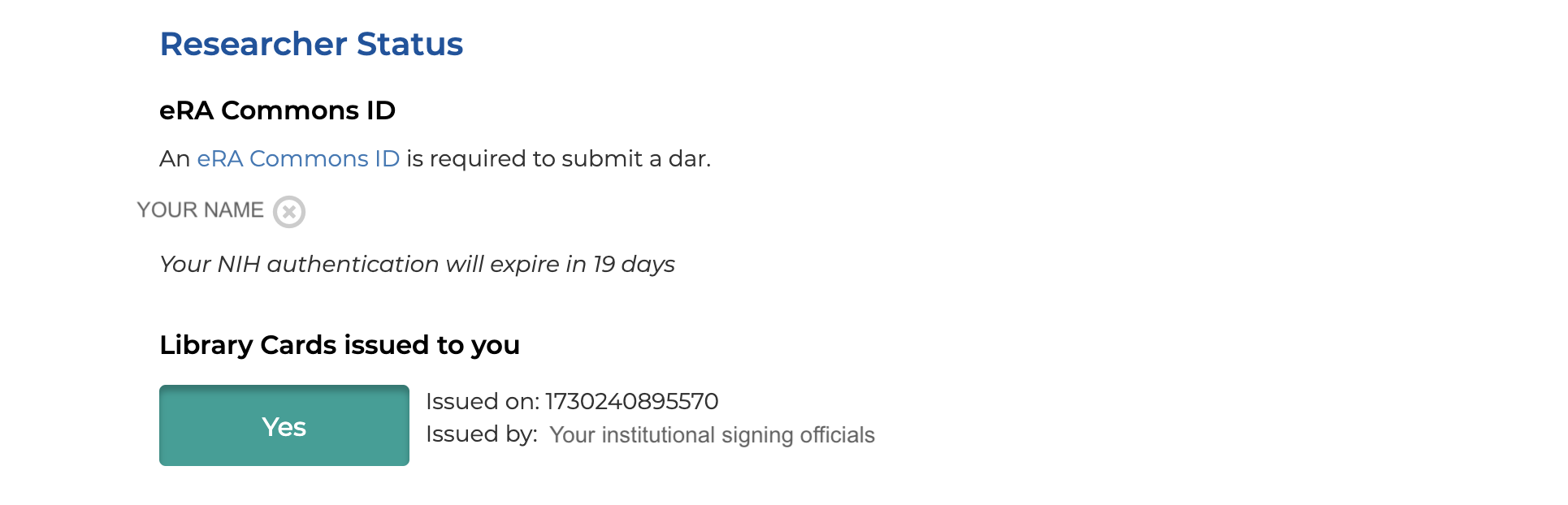

1.5. Link your eRA Commons ID. This will allow you to request access to controlled data.

DUOS-data-access-process_Screenshot-of-researcher-status-including-eRA-Commons-linking.png

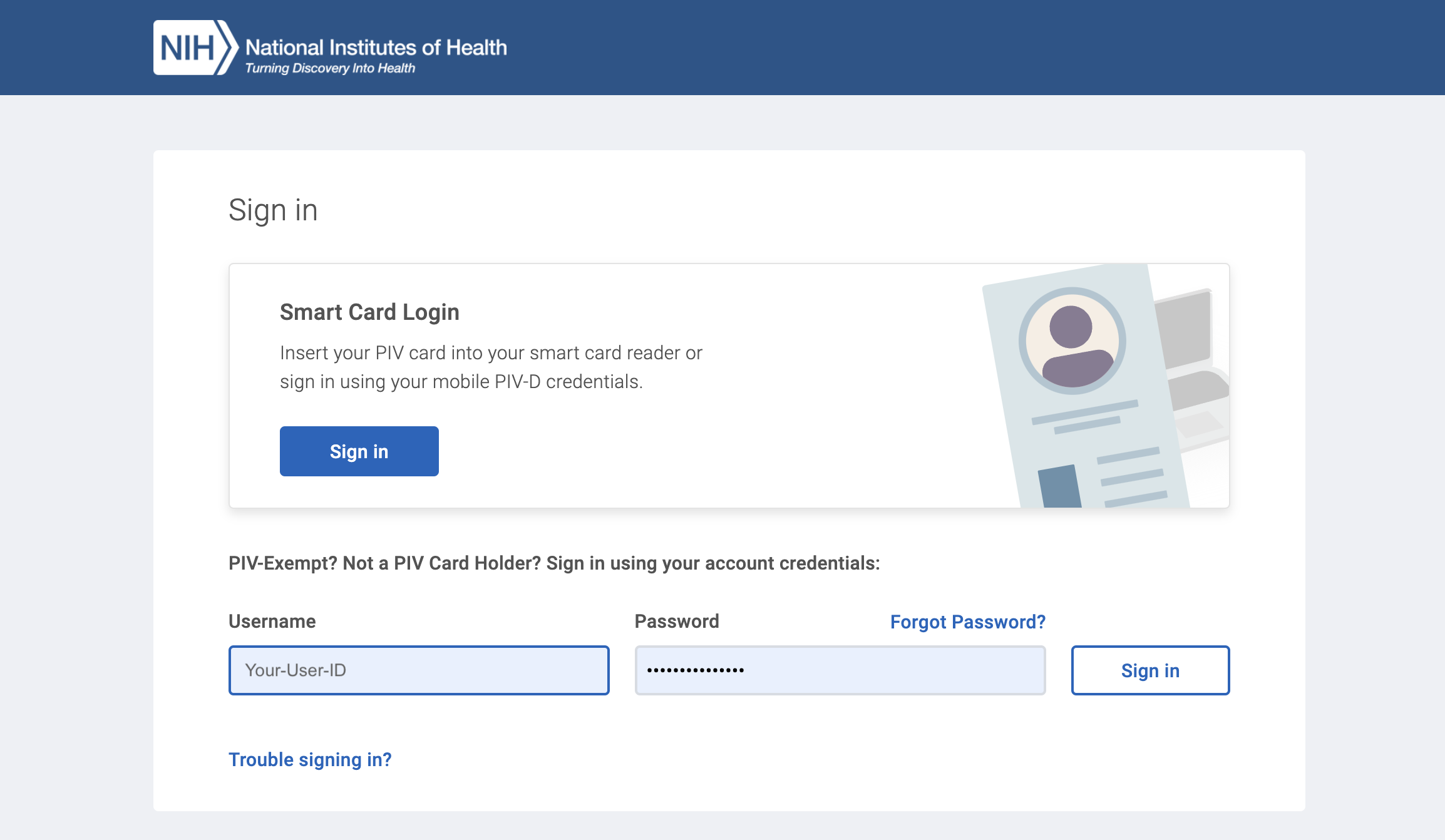

You’ll be taken to the external NIH page to sign into your eRA Commons account.

1.6. Invite your signing official to duos.org to register and give you a library card. See How to pre-authorize researchers to submit Data Access Requests (DARs) in DUOS for instructions.

1.7. Once you receive a Library Card, login to the DUOS Researcher Console. You should see your library card in the Profile page.

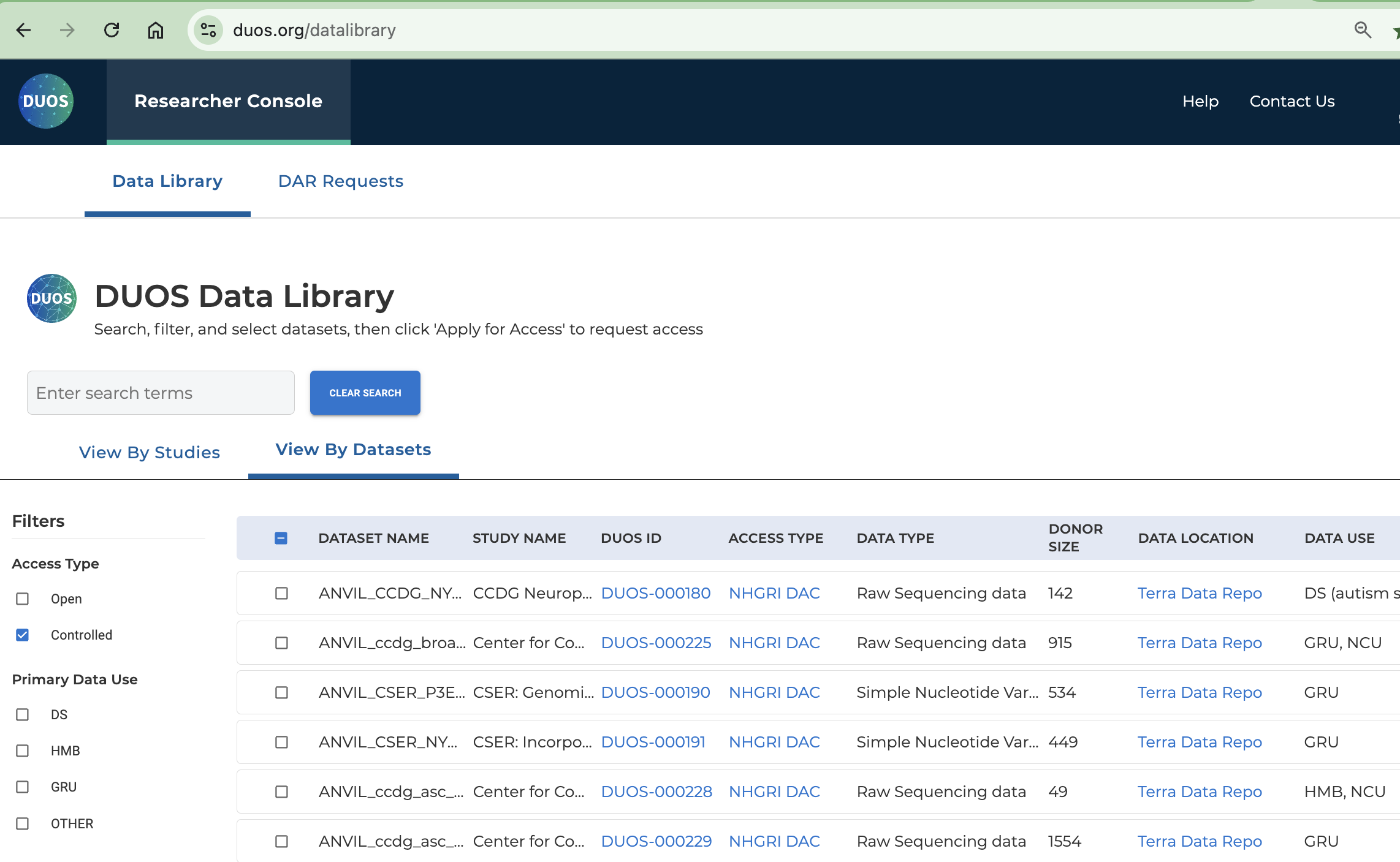

1.8. Go to the Data Library (https://duos.org/datalibrary) and filter/search for the dataset you’re looking for. Note that the example dataset in this doc is GTEx, but the instructions are not specific to that dataset.

How-to-access-GTEx-data-in-Terra_Screenshot-of-DUOS-data-library-with-controlled-data-selected.png

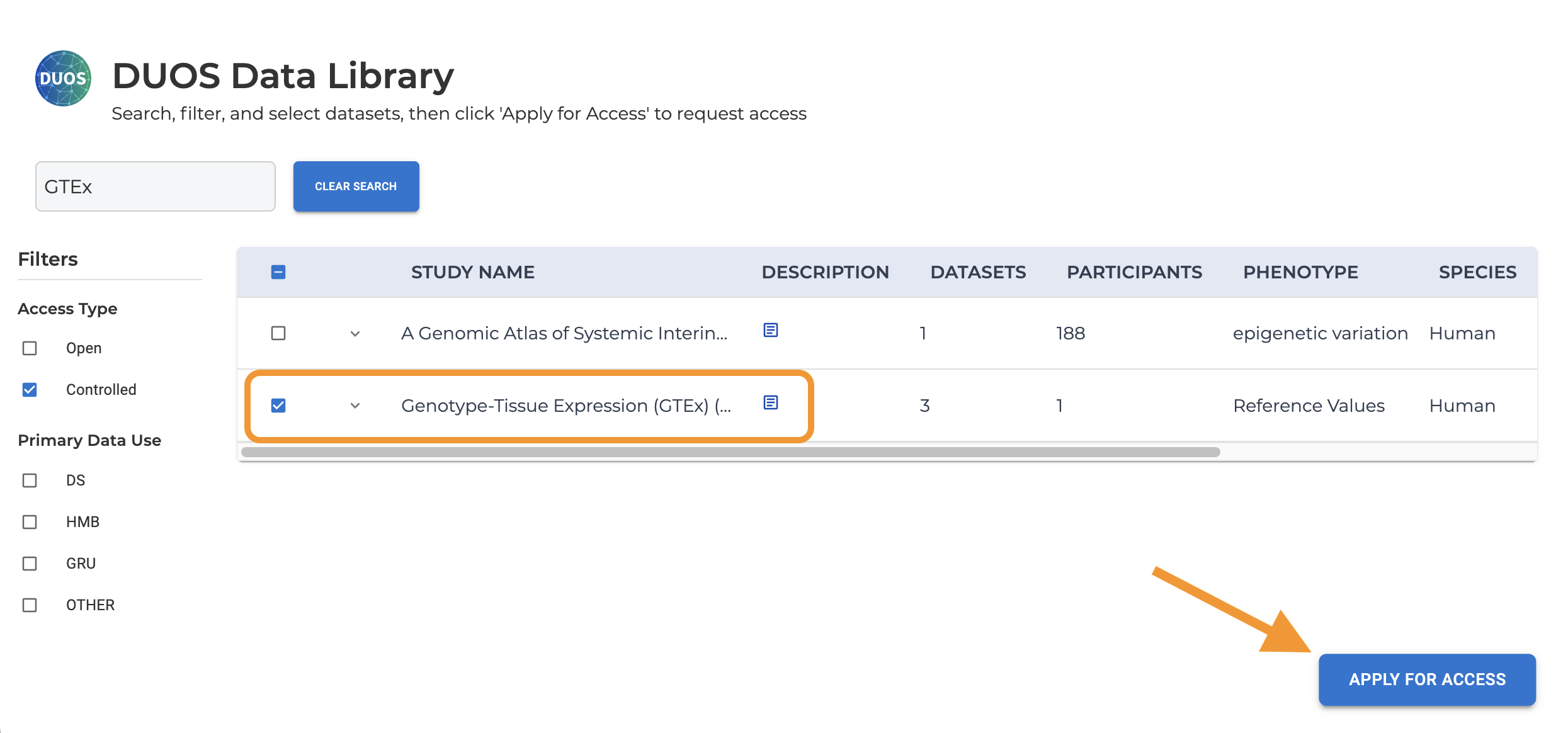

1.9. Select the dataset of interest (circled in screenshot) and click apply for access at the bottom right.

DUOS_Screenshot-of-GTEx-dataset-selected-in-data-library-and-an-arrow-pointing-to-the-apply-for-access-button-at-bottom-right.png

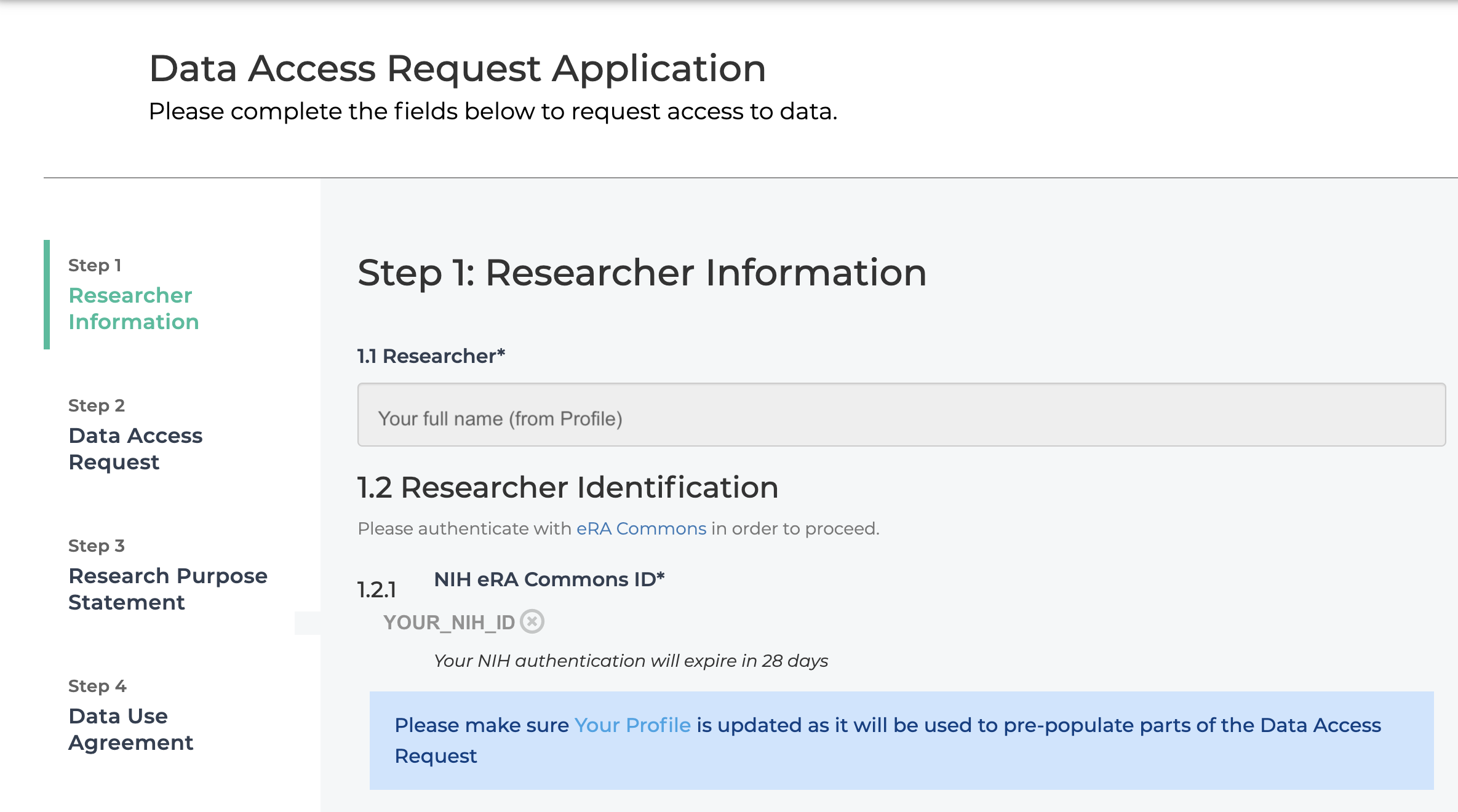

1.10. Fill out your data access request form, with as much detail as possible.

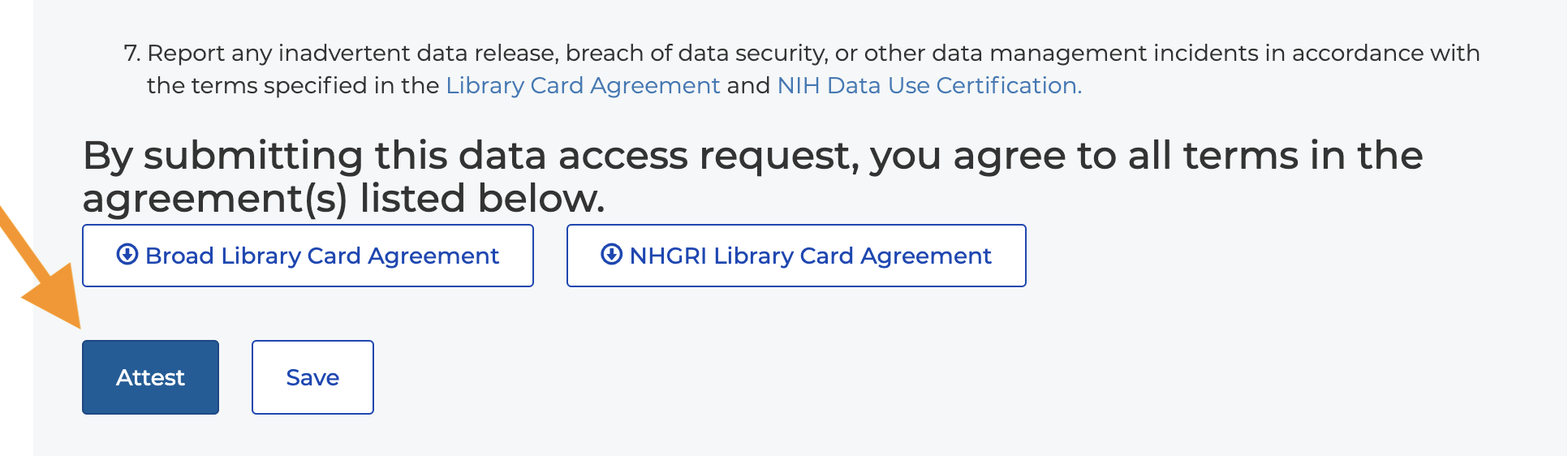

1.11. Make sure to attest to all terms in the library card agreements (screenshot below) by clicking the blue Attest button.

DUOS_Screenshot-of-end-of-the-DAR-form-with-linrary-card-agreements-and-blue-attest-button.png

1.12. Submit your DAR by clicking the blue Submit button (bottom left) beneath the addendum summarizing the requested datasets grouped by data use terms.


What to expect

It will take a few days to a few weeks for your DAR to be approved. You will get a notification in your email when you have access to the dataset.

Step 2: Export snapshot to Terra from the DUOS Library

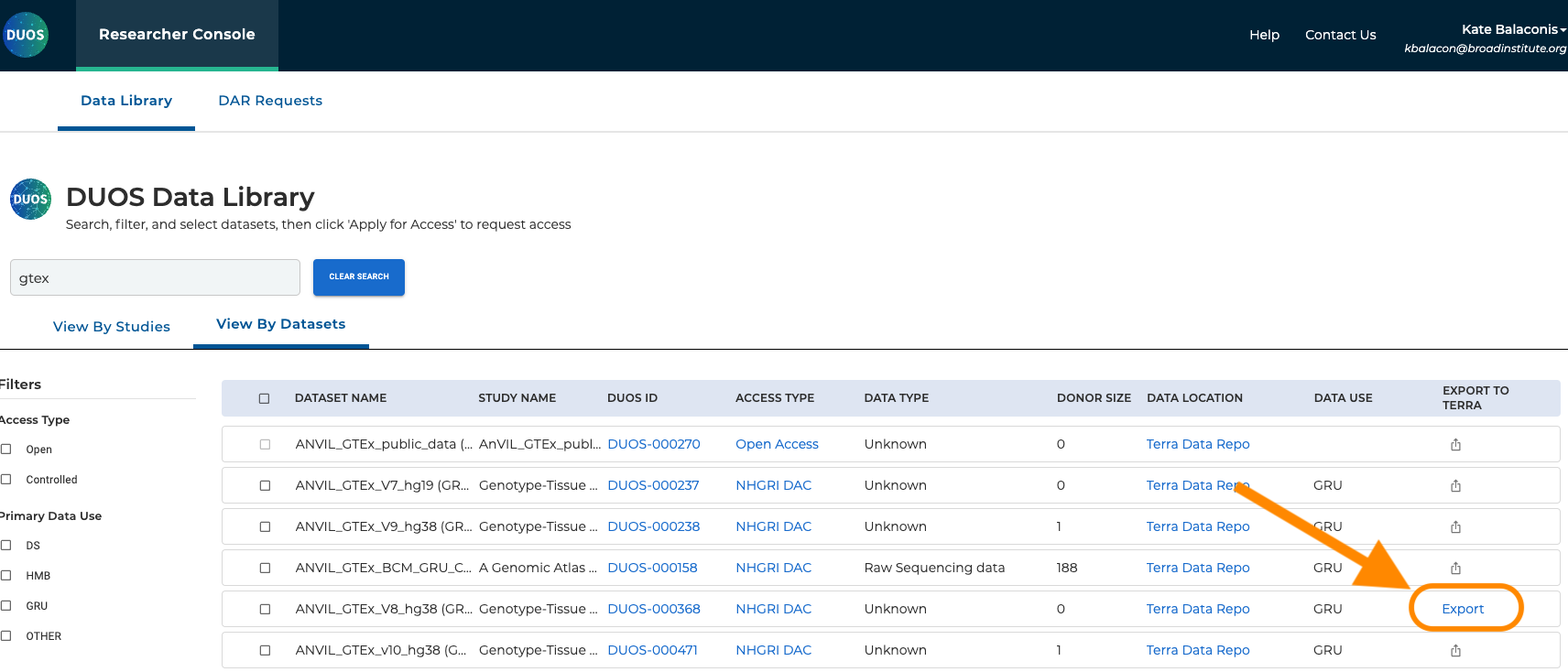

2.1. Once your DAR is approved, return to the DUOS Data Library, where you should now see a blue Export link in the View by Dataset tab under Export to Terra (right column) .

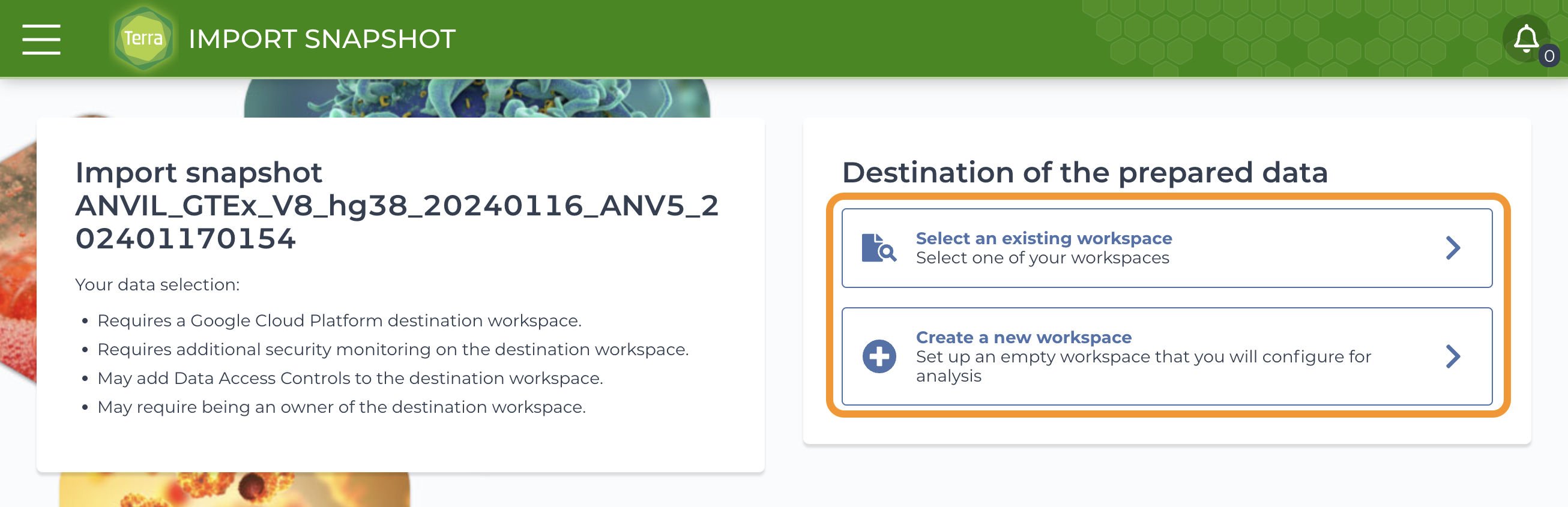

2.2. Clicking the button should allow you to export to an existing Terra workspace or to create a new one.

How-to-access-GTEX-data-in-Terra_Screenshot-of-option-to-export-data-to-an-existing-workspace-or-vreate-a-new-one.png

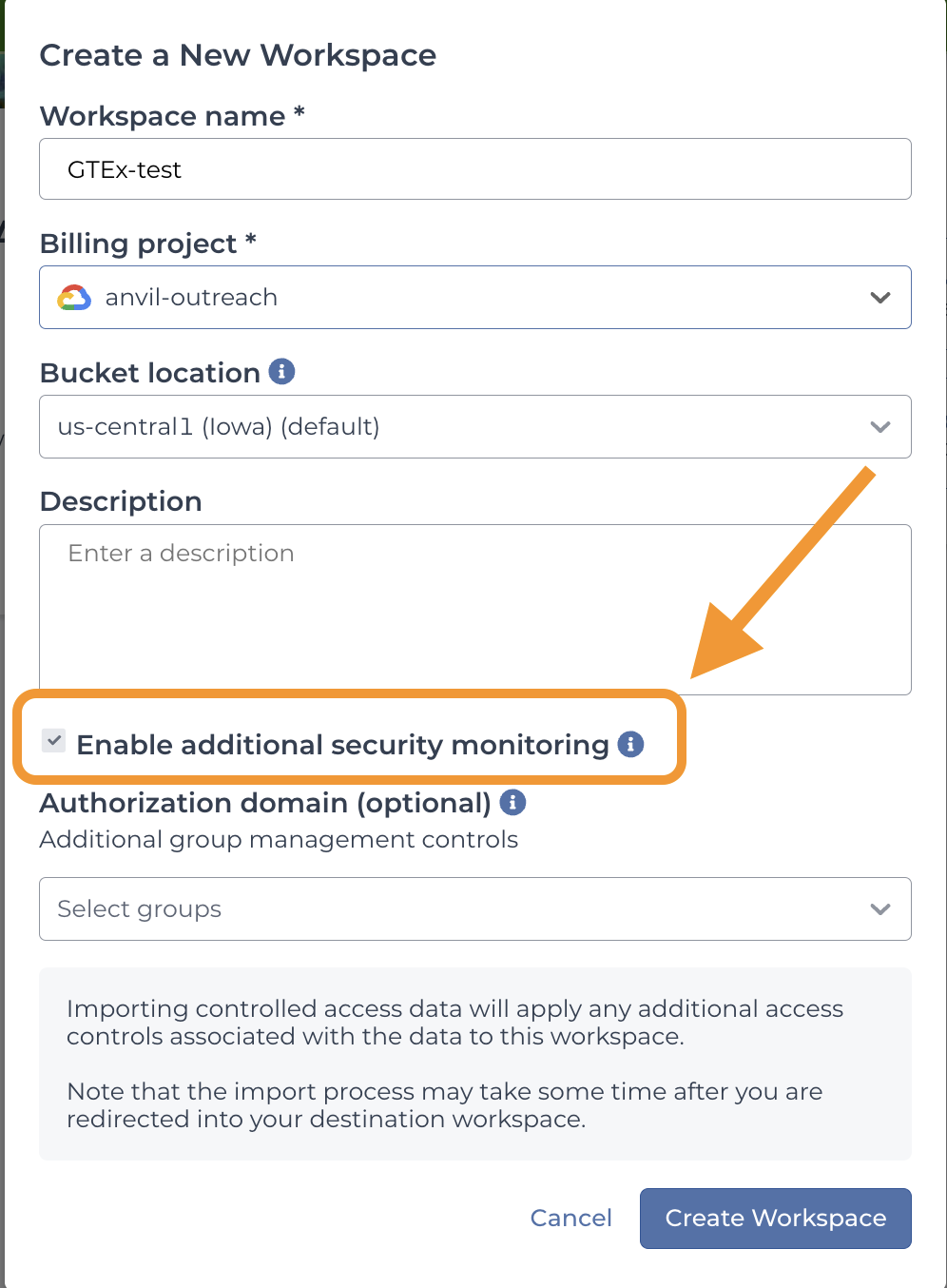

2.3. Note that if you're accessing controlled data, DUOS will automatically enable additional security on your new or existing workspace.

DUOS-access-GTEx-data_Screenshot-of-Create-a-new-workspace-form-with-enable-additional-security-monitoring-highlighted.png

What to expect

DUOS will import the data snapshot to a new or existing workspace.

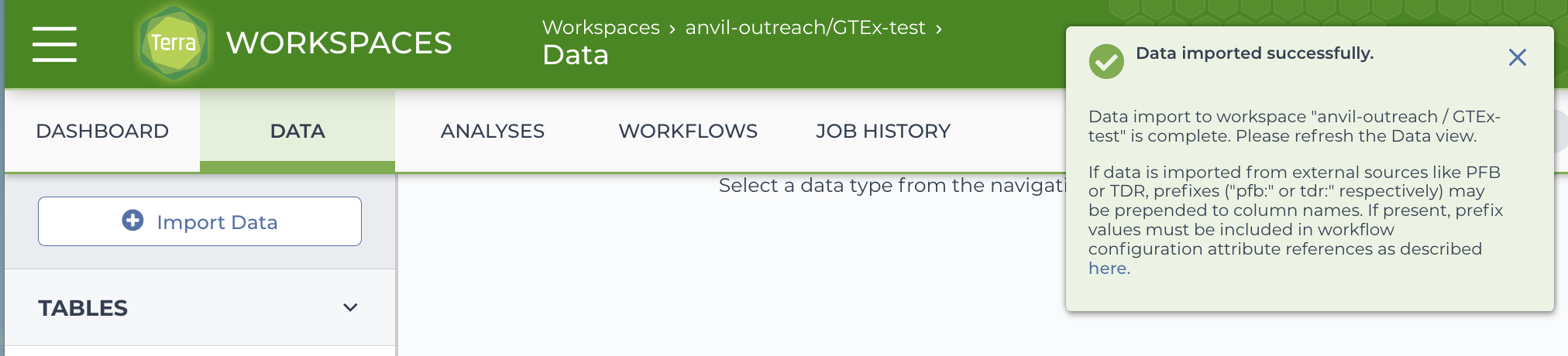

It will take a few minutes to export the snapshot. You’ll get a green popup (upper right) when data is in your workspace.

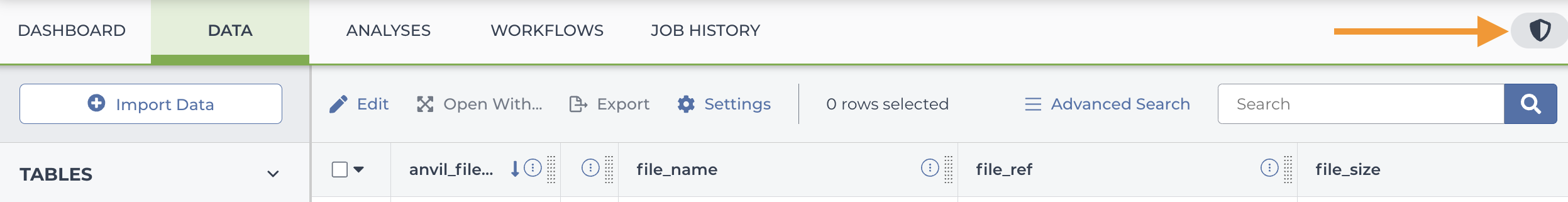

Once you refresh your page, you’ll see the data tables containing all the snapshot data and metadata in the Data tab of your workspace. Note the security shield at the top right indicating additional security monitoring.
